Bellow-sealed Valves

All Products

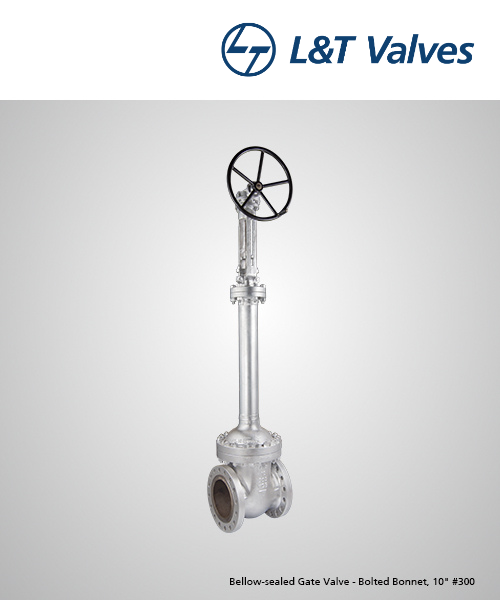

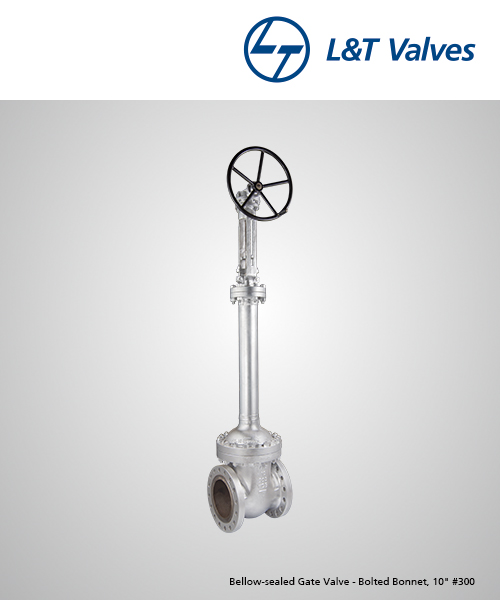

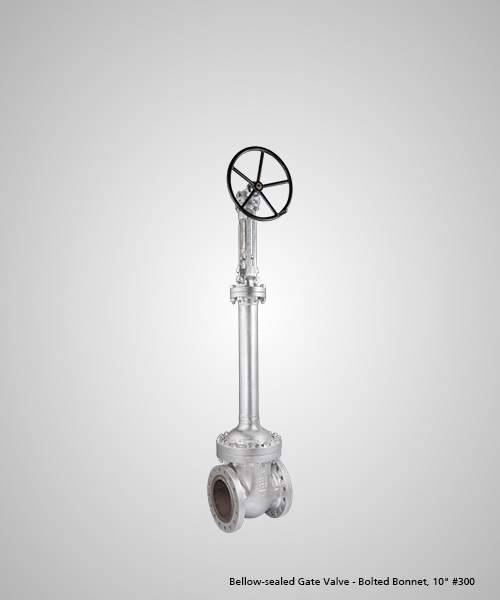

Bellow-sealed Gate and Globe Valves

Size  Gate Valves: 2" to 24" (50 mm to 600 mm)
 Globe Valves: 2” to 12” (50 mm to 300 mm)
ASME Class  Class 150 to 600
Design Standards  API 600 (Gate), API 623 (Globe), MSS SP-117

Beyond Standards:

  • Fugitive Emissions - Complies to ISO 15848-1: 2006 Class AH leakage
  • SIL3 Safety Integrity Level for Automated Valves
  • The bellows lifecycle is designed as per MSS SP-117

Features that Add Value:

  • Metal bellows seal the moving stem and increase durability of packed stem seal valves
  • Bellow provide a barrier between the stem at its point of entry through the pressure boundary and the process fluid within the valve, to eliminate stem leakage
  • An anti-rotation device is provided in the bonnet to ensure bellow does not get twisted during assembly and disassembly or by vibration
  • Bellow-sealed valves are usually leak tested using a mass spectrometer to detect leakage rates below 1x10E-06 std.cc/sec.
  • Bellow-sealed bonnets are backed up with a standard stem packing set and a leakage monitoring port between the bellows and the packing in order to prevent catastrophic release of hazardous fluid in the event of a bellows leak.

Versatile Solutions:

  • ValvTrac™ RFID tags for reliable digital traceability
