Trunnion-mounted Ball Valves
All Products
Trunnion-mounted Ball Valves
| Size | 2" to 56" (50 mm to 1400 mm) |
| ASME Class | Class 150 to 2500 |
| Design Standard | API 6D |
Beyond Standards:
- Trunnion-mounted Ball Valve design complies to API 6D
- Valves offered with API 6D monogram

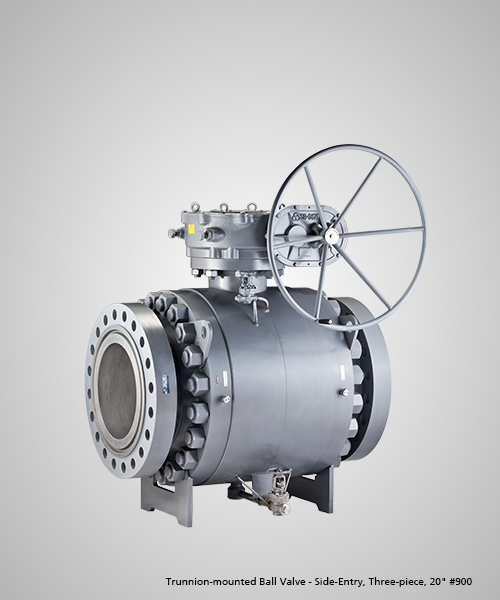

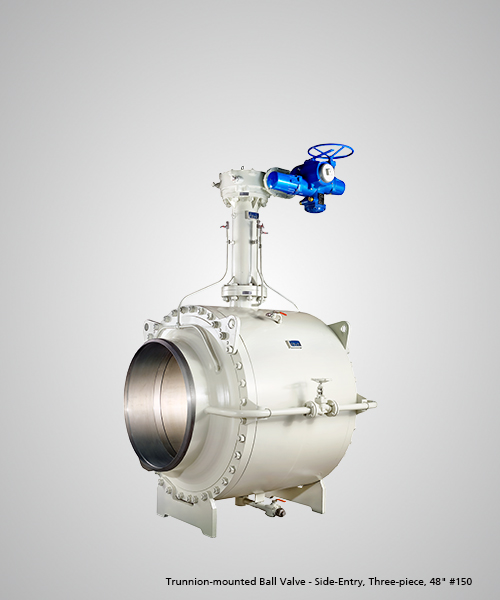

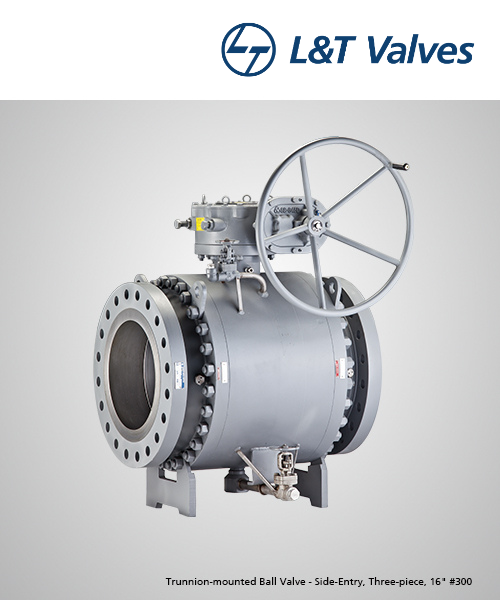

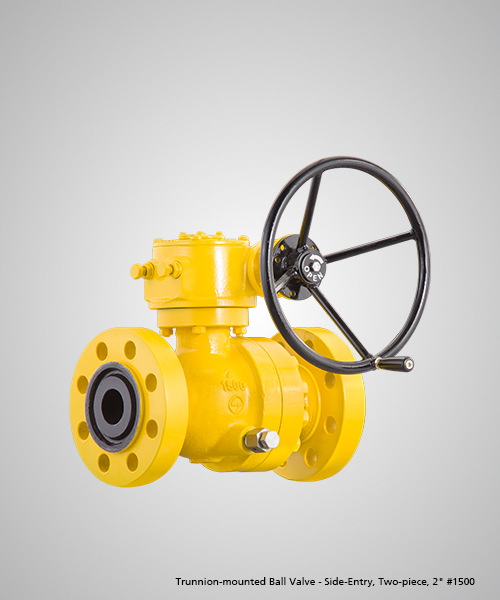

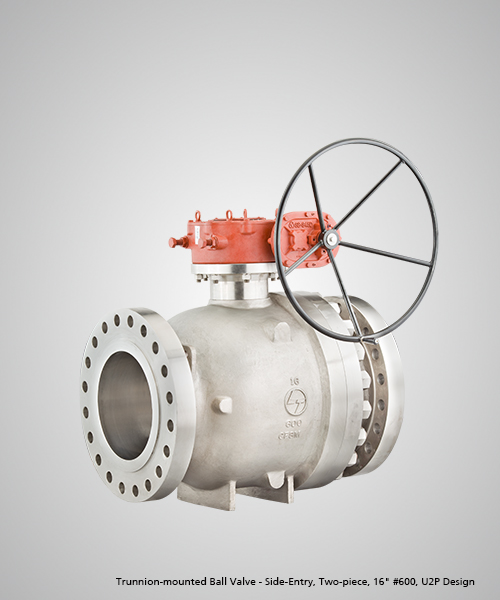

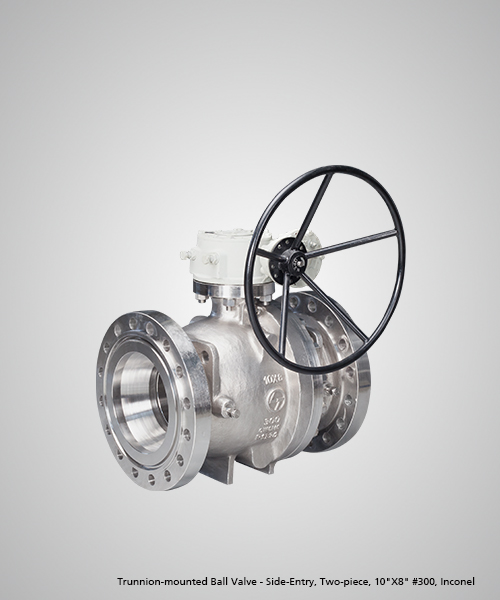

- Wide portfolio of Side-entry and Top-entry designs
- Fugitive emissions - Soft and Metal seated valves complies to ISO 15848-1, Class AH and BH
- Stem seal configurations tested to API 622 at Yarmouth Research labs, Maine, USA
- Firesafe design - Tested to API 607 and API 6FA
- CE Marking - Meets requirements of Pressure Equipment Directive 2014/68/EU, Annexure III, Module H
- PED Module B1 Design examination certificate (certified by DNV) available
- Atex - Meets requirements of Atex Directive 94/9/EC (ATEX), category 2 non-electrical equipment
- SIL3 - Safety Integrity Level SIL 3 certification to IEC 61508, certified by Exida/ TUV
- Valves successfully tested to Shell Design Evaluation Test, Procedure 77/300 for temperature -29 to 150 degree C (O rings) and -50 to 150 degree C (Lip seals)
- Pneumatic shell test conducted at 1.1 times rated pressure to check shell integrity, when required
Features that Add Value:
- Double block and bleed (DBB) feature - Valves are designed and tested for automatic cavity relief
- Anti-blowout stem design
- Coil springs used for consistent seat loading and lower operating torque

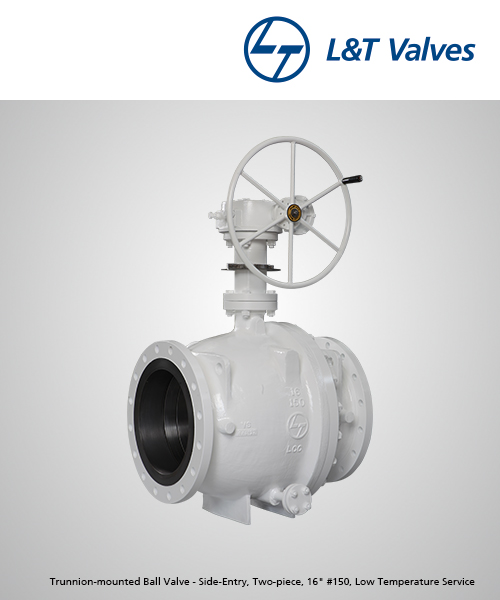

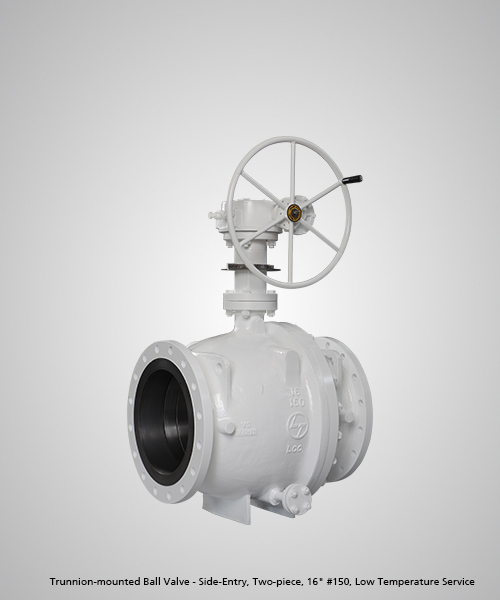

- Lip seals provided for low temperature services
- 2/3 stage Stem and 2 stage Body Joint sealing system; Primary O ring and Secondary graphite (in 3 stage stem, thrust washer is primary)

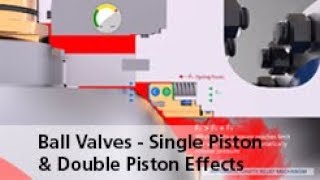

- Where tight shut off is required, Double piston effect (DPE) seats provided for redundancy in sealing
Versatile Solutions:

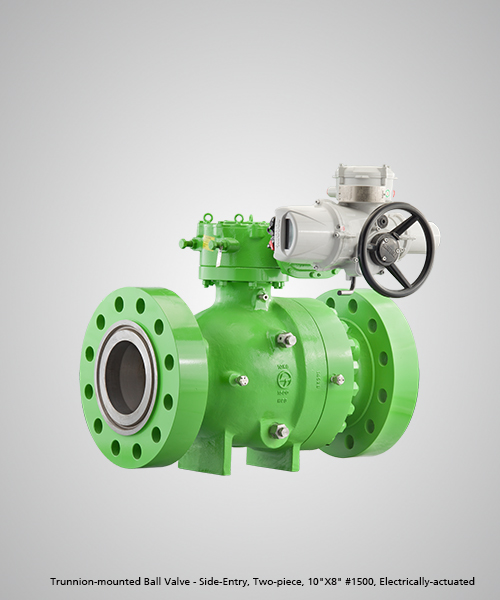

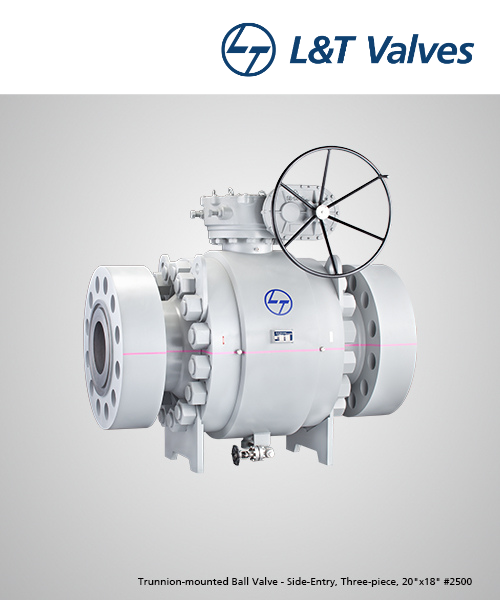

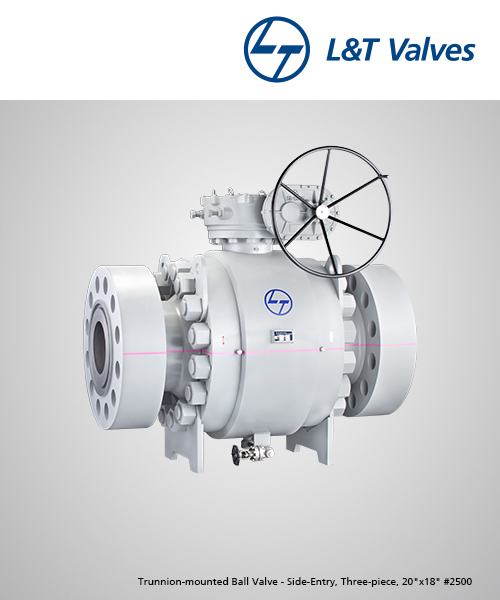

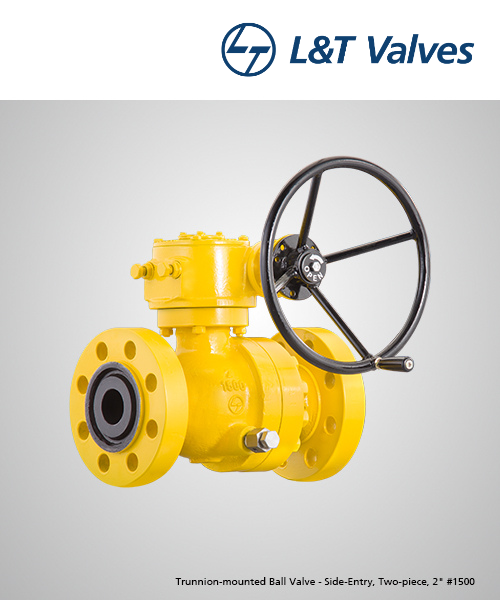

- Wide portfolio of Side-entry and Top-entry designs
- Options: Buried service, Cryogenic

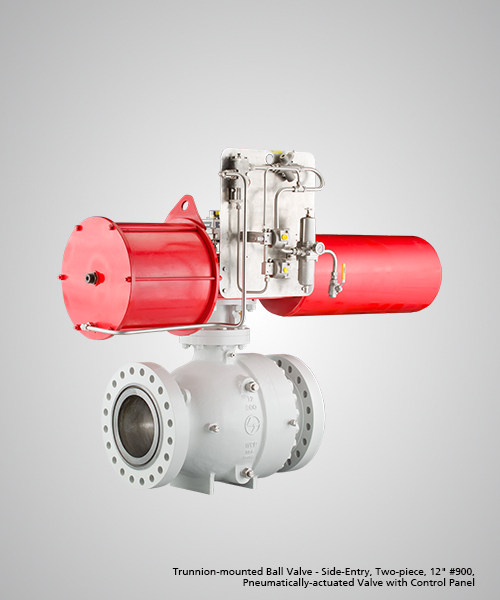

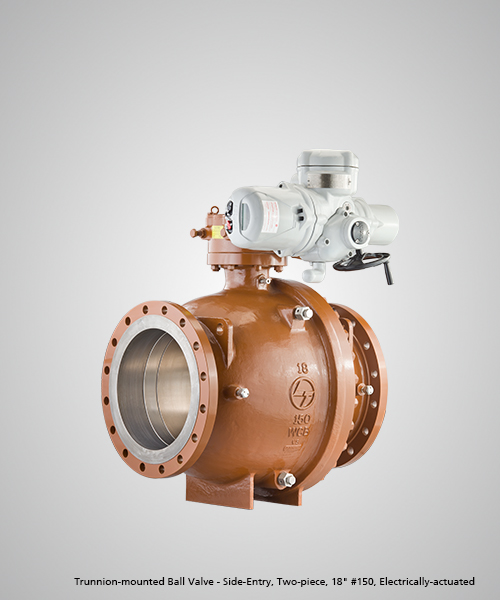

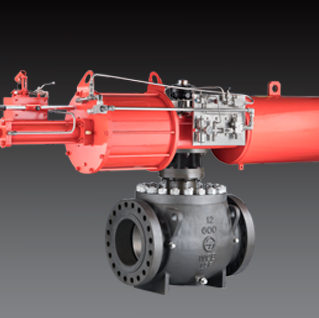

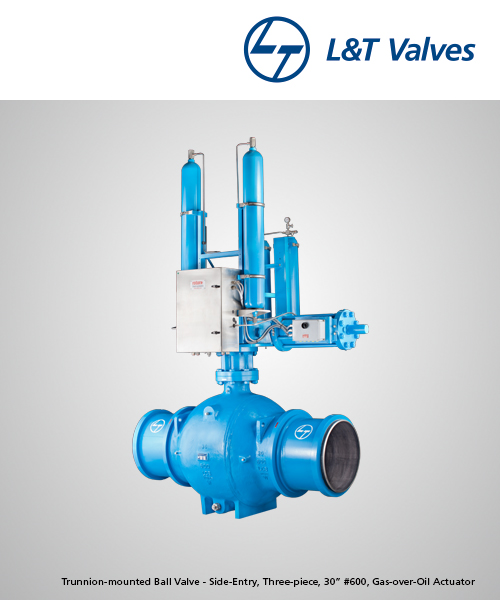

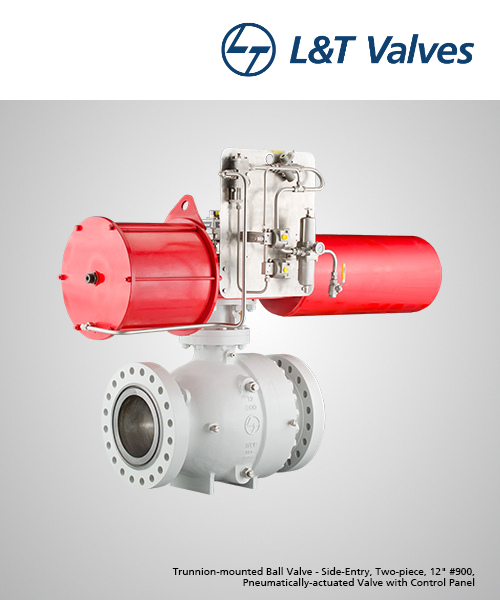

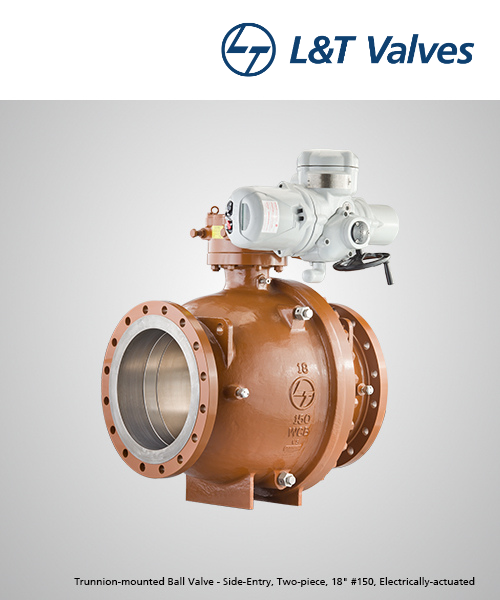

- Offered with Electric, Pneumatic and Hydraulic Actuators
- In-house Tests Capabilities - Cryogenic Test, Pipe Bending Test, Vacuum Test and Fast Closure Test
- ValvTrac™ RFID tagging offered for reliable digital traceability

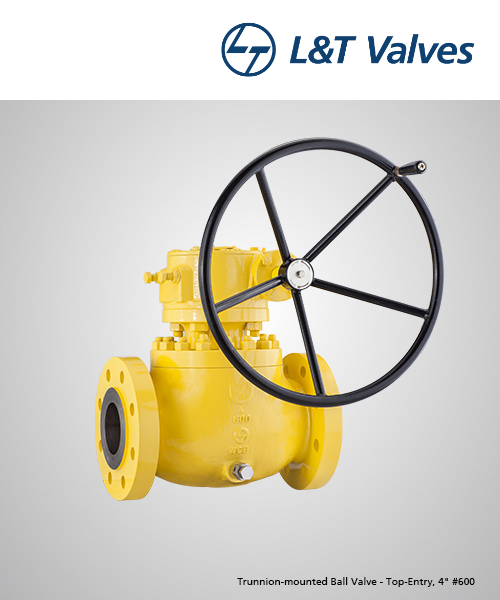

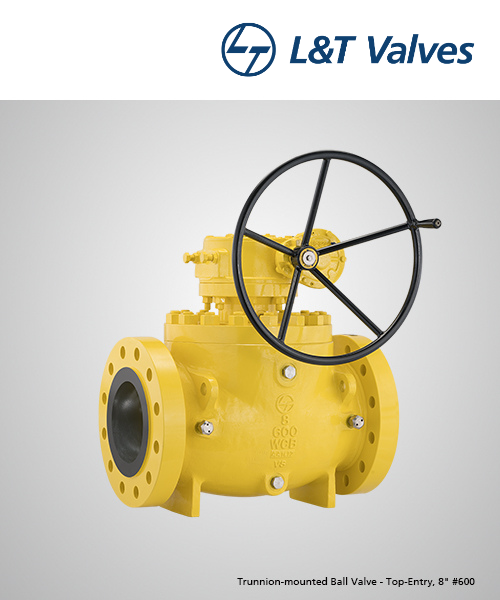

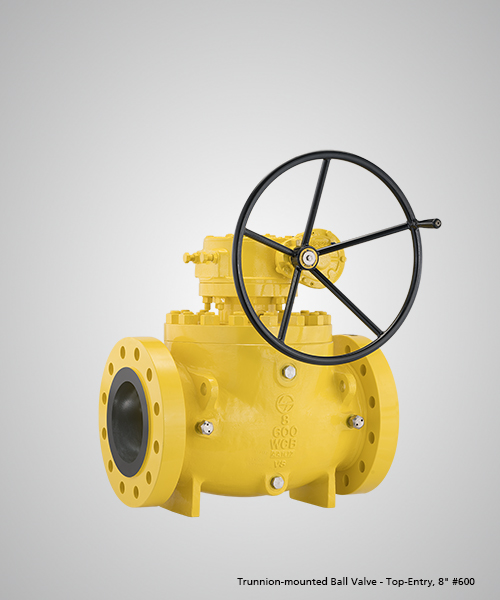

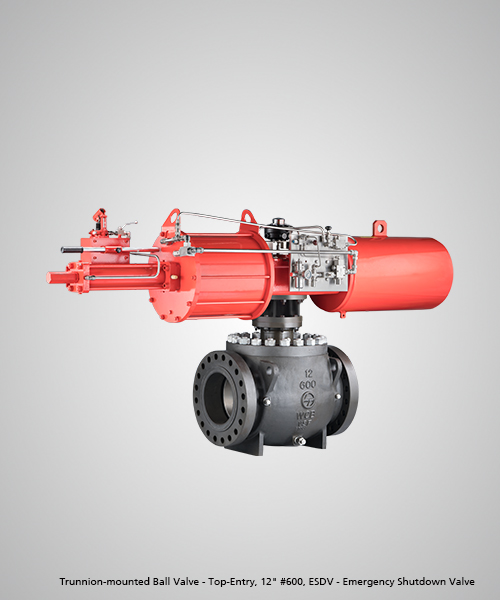

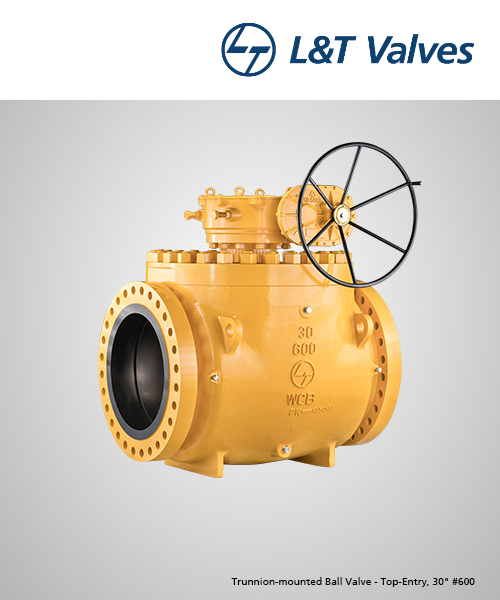

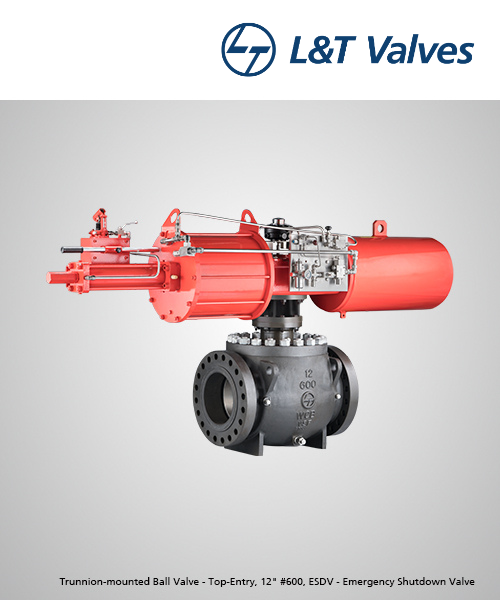

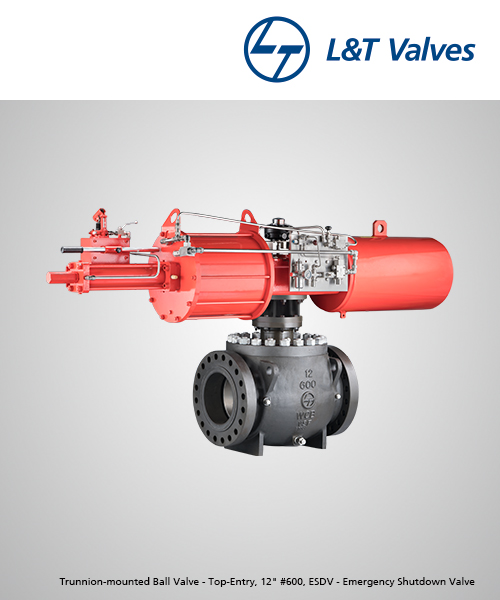

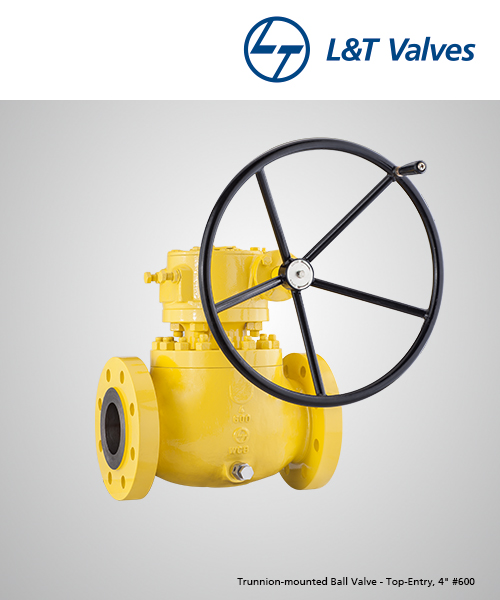

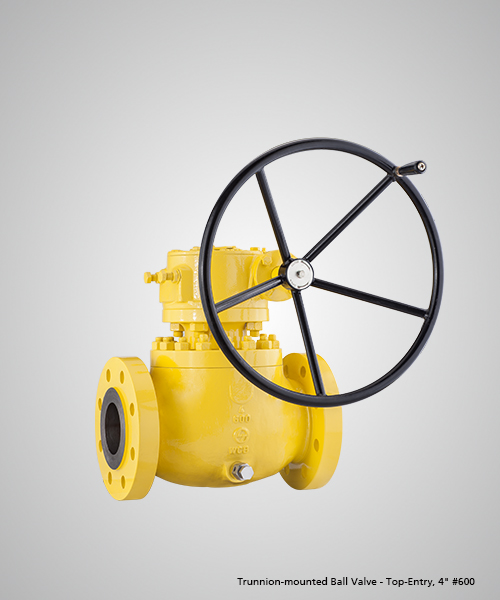

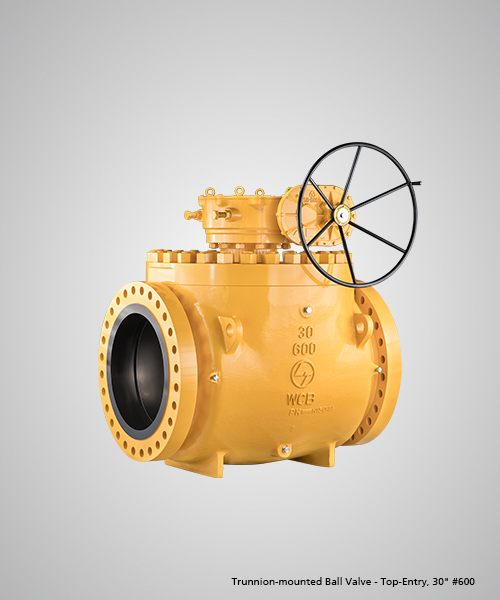

Trunnion-mounted Ball Valves - Top-entry Design
Special Features:
- Accessibility to all the valve internals from the top
- In-line valve maintenance, without disassembling the valve from the pipeline
- Reduces maintenance downtime
- Body cover joint not exposed to pipeline stresses

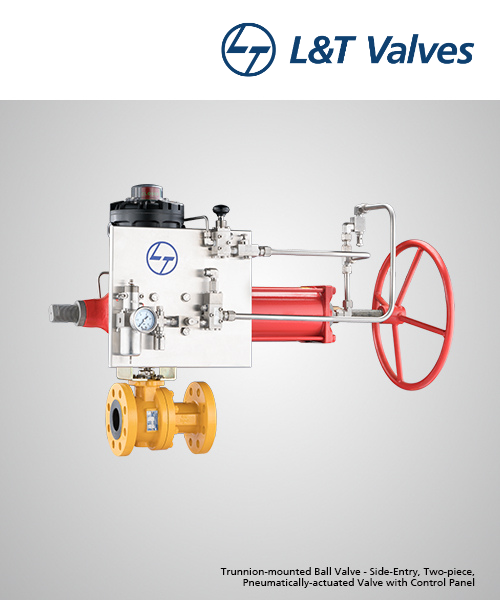

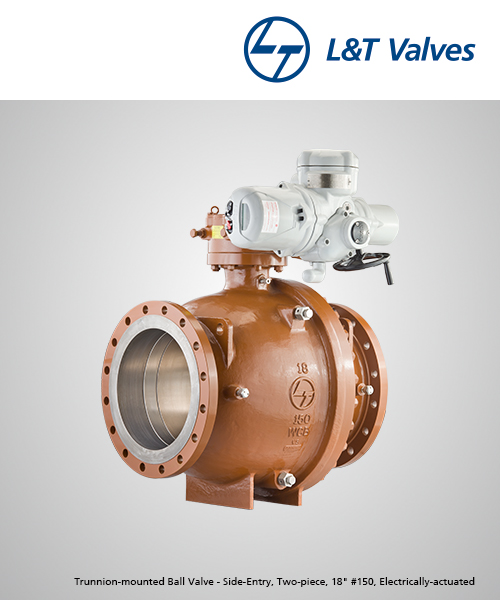

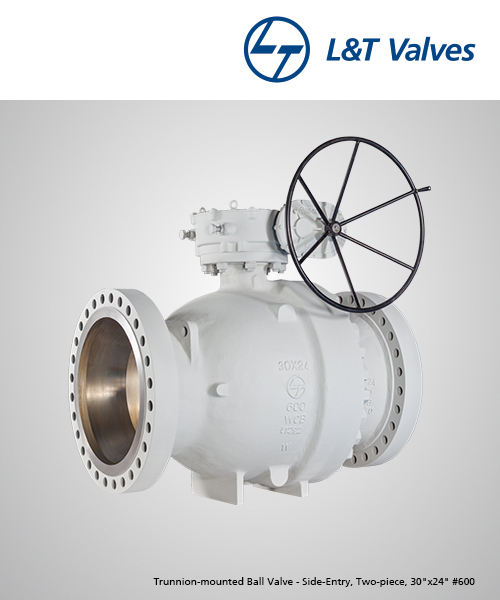

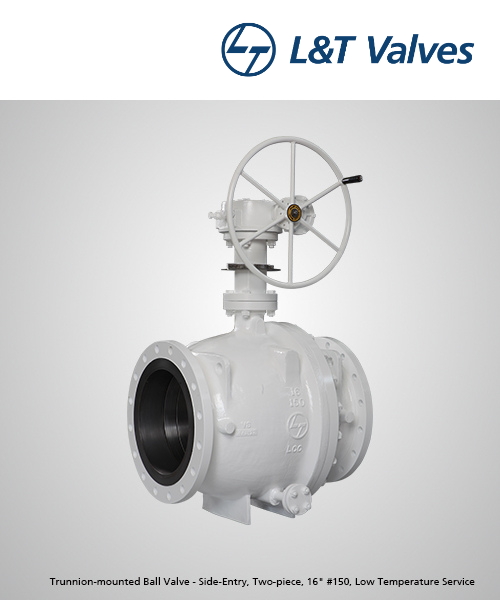

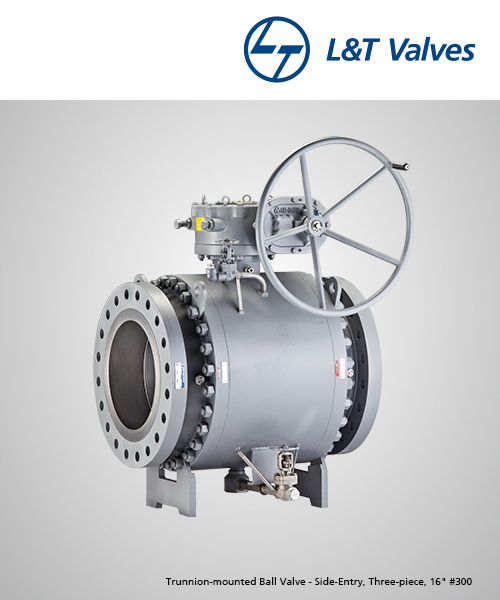

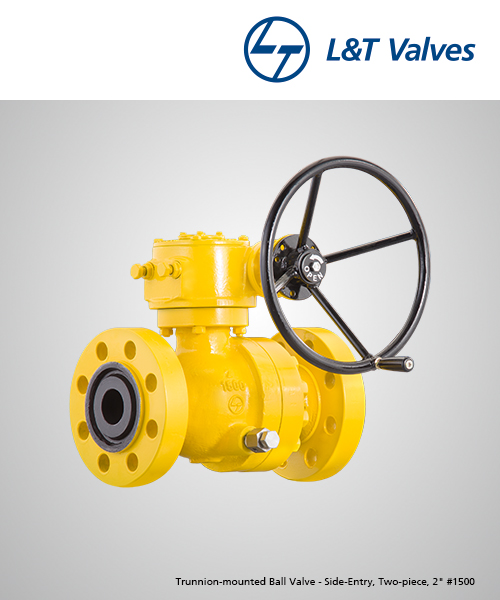

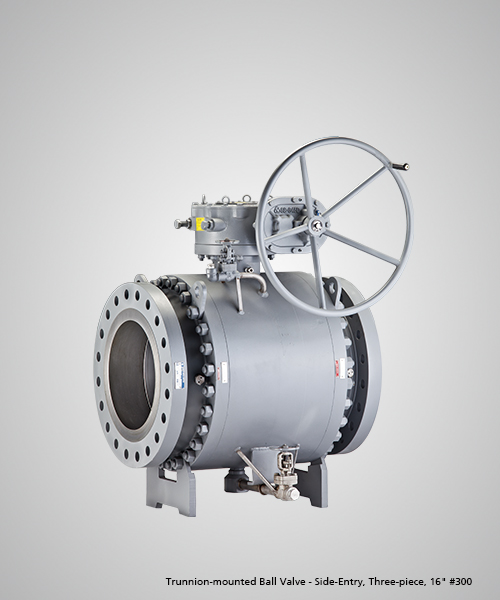

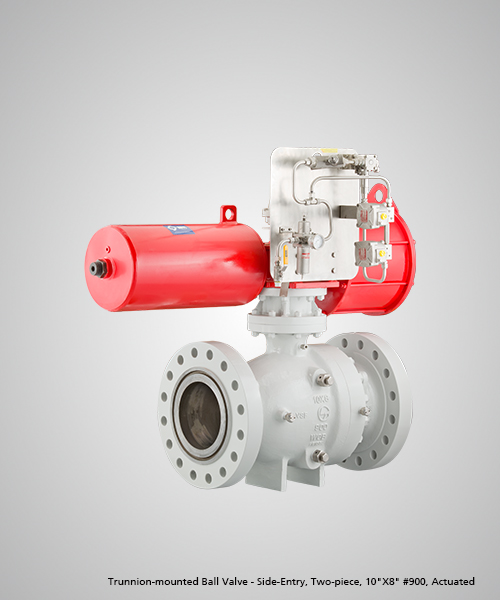

Gallery

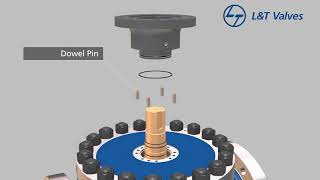

Videos
